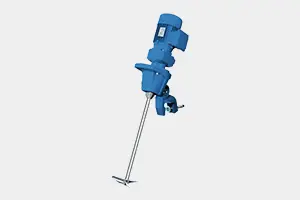

XP Mixer
Chemineer’s XPress Portable Mixers provide assistance for mixing requirements across diverse industries, including chemical and petrochemical, pharmaceutical, biotechnology, polymers, as well as food and grain processing.
Models
Positive Lubrication:
- 10XPB
- 10XPC
- 30XPC
- Industry standard
- off-the-shelf
- IEC electric or air motors
features
- Gear-reduced Model 40XPC; Low maintenance integral motor/gear drive offers 290 rpm nominal output speed.
- Built-in cast aluminum handle for convenient maneuvering and positioning.
- A robust cast aluminum C-clamp or cup plate mount provides three-dimensional positioning with secure lock adjustability. Additionally, a bung-mount mixer designed to accommodate all 2″ NPT drum openings is also available.
- Rugged, heavy-duty shafting manufactured from 316L SS. 16mm or 25mm diameter shafting straightened to 0.16mm per metre to reduce vibration and extend unit life. Shaft lengths to 2500mm.
- A high-efficiency impeller (JF-3) or propeller (JP-3) is standard depending on model. The bung-mount mixer, 10XPB, is available with a 100mm or 127mm collapsible propeller.
specifications
| Model 10XPB |
Model 10XPC |
Model 30XPC |
Model 40XPC |
|
|---|---|---|---|---|
| Mounting | Bung Mount, 2″ NPT | Clamp or Cup Plate | Clamp or Cup Plate | Clamp or Cup Plate |
| Speed (rpm) | 1750 | 1750 | 1750 | 350 |
| Motor Size | Up to 1 hp | Up to 1 hp | Up to 2 hp | Up to 1 hp |
| Shaft Diameter | 5/8″ | 5/8″ | 1″ | 1″ |
| Shaft Extension | Up to 66″ | Up to 66″ | Up to 98″ | Up to 98″ |
| Impeller / Propeller Diameter | Collapsible Propeller | Marine Prop (JP-3) | Marine Prop (JP-3) | High Efficiency Impeller (SC-3) Marine Prop (JP-3) |
